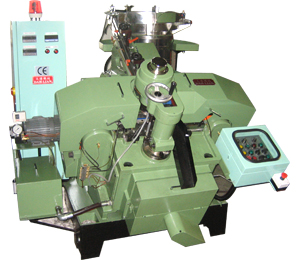

+ SELF-DRILLING SCREW FORMING MACHINE
> Specification
| MODEL | DL-1405 | DL-1606 | DL-1606BL | |
|---|---|---|---|---|
| Production Capacity |
Blank Dia. | 6#~10# (Blank dia. 2.8~4.8mm) |
6#~14# (Blank dia. 2.8~6.5mm) |
6#~16# (Blank dia. 2.8~6.5mm) |
| Length | 9.5~100mm(3.8"~4") | 9.5~125mm(3/8"~5") | 9.5~210mm(3/8"~8") | |
| Point | Point No. 1~No. 3 | Point No. 1~No. 6 | Point No. 1~No. 6 | |
| Machine Speed | 120~600 pcs/min | 100~600 pcs/min | 100~400 pcs/min | |
| Main Motor | 3.7KW / 6P | 7.5 HP (5.5KW) / 6P | 10HP (7.5KW) / 6P | |
| Machine Size | 160(L) x 190(W) x 165(H)cm | 168(L) x 230(W) x 180(H)cm | 180(L) x 240(W) x 205(H)cm | |
| Machine Weight(net) | 1850 kgs(Approx.) | 2350 kgs(Approx.) | 2800 kgs(Approx.) | |
