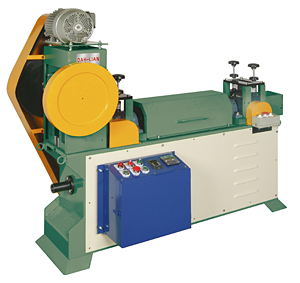

+ WIRE STRAIGHTENING AND CUTTING MACHINE
| MODEL | DL-153 | DL-255 | DL-408 | DL-610 | DL-812 | DL-1016 | DL-1220 |
|---|---|---|---|---|---|---|---|
| Dia. Range | 1.5~3.0mm | 2.5~5.5mm | 4.0~8.0mm | 6.0~10mm | 8~12mm | 10~16mm | 12~20mm |
| Length Range | 30~1800mm | 40~2400mm | 40~3000mm | 50~3000mm | 50~3000mm | 70~3000mm | 80~3000mm |
| Motor | 1/2HP,2HP | 1HP,3HP | 2HP,7.5HP | 3HP,10HP | 3HP,2HP,15HP | 5HP,3HP,20HP | 7.5HP,5HP,25HP |
| Weight | 270kg | 340kg | 650kg | 780kg | 1200kg | 2000kg | 3800kg |
| Size (cm) | 115x65x110 | 145x65x115 | 180x75x140 | 200x75x150 | 203x75x140 | 290x90x155 | 383x90x158 |
